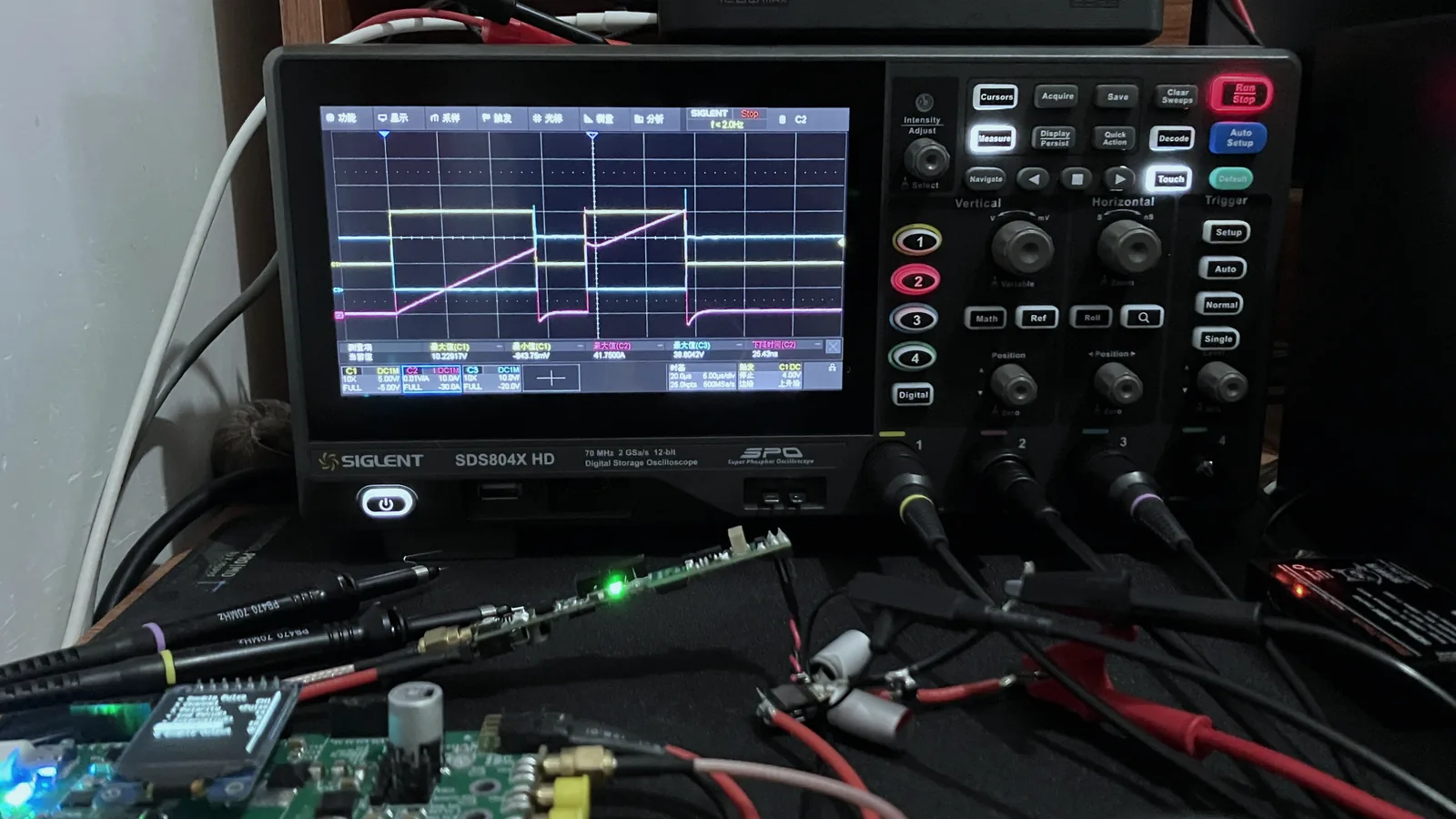

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
1196
1197
1198
1199
1200
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223
1224
1225
1226
1227
1228
1229
1230
1231
1232
1233
1234
1235
1236
1237
1238
1239
1240
1241
1242
1243
1244
1245
1246
1247
1248
1249
1250
1251
1252
1253
1254
1255
1256
1257
1258
1259
1260
1261
1262
1263
1264
1265
1266
1267
1268
1269
1270
1271
1272
1273
1274
1275
1276
1277
1278
1279
1280
1281
1282
1283
1284
1285
1286
1287
1288
1289
1290
1291
1292
1293
1294
1295
1296
1297
1298
1299
1300
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
1316
1317
1318
1319
1320
1321
1322
1323
1324
1325
1326
1327
1328
1329
1330
1331
1332
1333
1334
1335
1336
1337
1338
1339
1340
1341
1342
1343
1344
1345
1346
1347
1348
1349
1350
1351
1352
1353
1354
1355
1356
1357
1358
1359
1360
1361
1362
1363
1364
1365
1366
1367
1368
1369
1370
1371
1372
1373
1374
1375
1376
1377
1378
1379
1380
1381
1382
1383
1384
1385
1386
1387
1388
1389
1390
1391
1392
1393
1394
1395
1396
1397
1398
1399
1400
1401
1402
1403
1404
1405
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1420
1421
1422
1423
1424
1425
1426
1427
1428
1429
1430
1431
1432
1433
1434
1435
1436
1437
1438
1439
1440
1441
1442
1443
1444
1445
1446
1447
1448
1449
1450
1451
1452
1453
1454
1455
1456
1457
1458
1459
1460
1461
1462
1463
1464
1465
1466
1467
1468
1469
1470
1471
1472
1473
1474
1475
1476
1477
1478
1479
1480
1481
1482
1483
1484
1485
1486
1487
1488
1489
1490
1491
1492
1493
1494
1495
1496
1497
1498
1499
1500
1501
1502
1503
1504
1505
1506
| #!/usr/bin/env python3
# -*- coding: utf-8 -*-
# Copyright (c) 2026 Chen Fangshuo
# SPDX-License-Identifier: MIT · 完整许可文本见仓库根目录 LICENSE
"""
双脉冲测试（DPT）示波器 CSV 自动分析脚本
==========================================
支持鼎阳（Siglent）示波器导出的“单通道一个 CSV”格式：
前若干行是元数据（Record Length / Sample Interval / Vertical Units / Source ...），
之后是 `Second,Value` 表头和数据。
默认按 CH1=VGS、CH2=ID、CH3=VDS 使用；三份 CSV 可以不同时基/点数，
脚本会自动对齐到同一条时间轴。
所有可调参数集中在下面的“0. 配置区”，改完直接运行即可。
命令行参数见 `python dpt_analyzer.py -h`。
"""
from __future__ import annotations
import argparse
import sys
from dataclasses import dataclass, field
from pathlib import Path
import numpy as np
import pandas as pd
# 用 SciPy 的 trapezoid，兼容 NumPy 1.x / 2.x（NumPy 1.x 没有 np.trapezoid）。
from scipy.integrate import cumulative_trapezoid, trapezoid
from scipy.signal import bilinear, lfilter, lfilter_zi
# ==============================================================================
# 0. 配置区（所有可调参数都在这里）
# ==============================================================================
# ---------- 0.1 输入 / 输出 ----------
DEFAULT_DATA_DIR = "." # 无参数运行时扫描哪个目录
CSV_GLOB_C1 = "*_C1_*.csv" # 自动扫描模式：C1 文件名的匹配规则
CH_VGS, CH_ID, CH_VDS = "C1", "C2", "C3" # 通道角色 → 文件名里的通道标记
OUTPUT_DIR = "." # 图片/CSV 默认输出目录

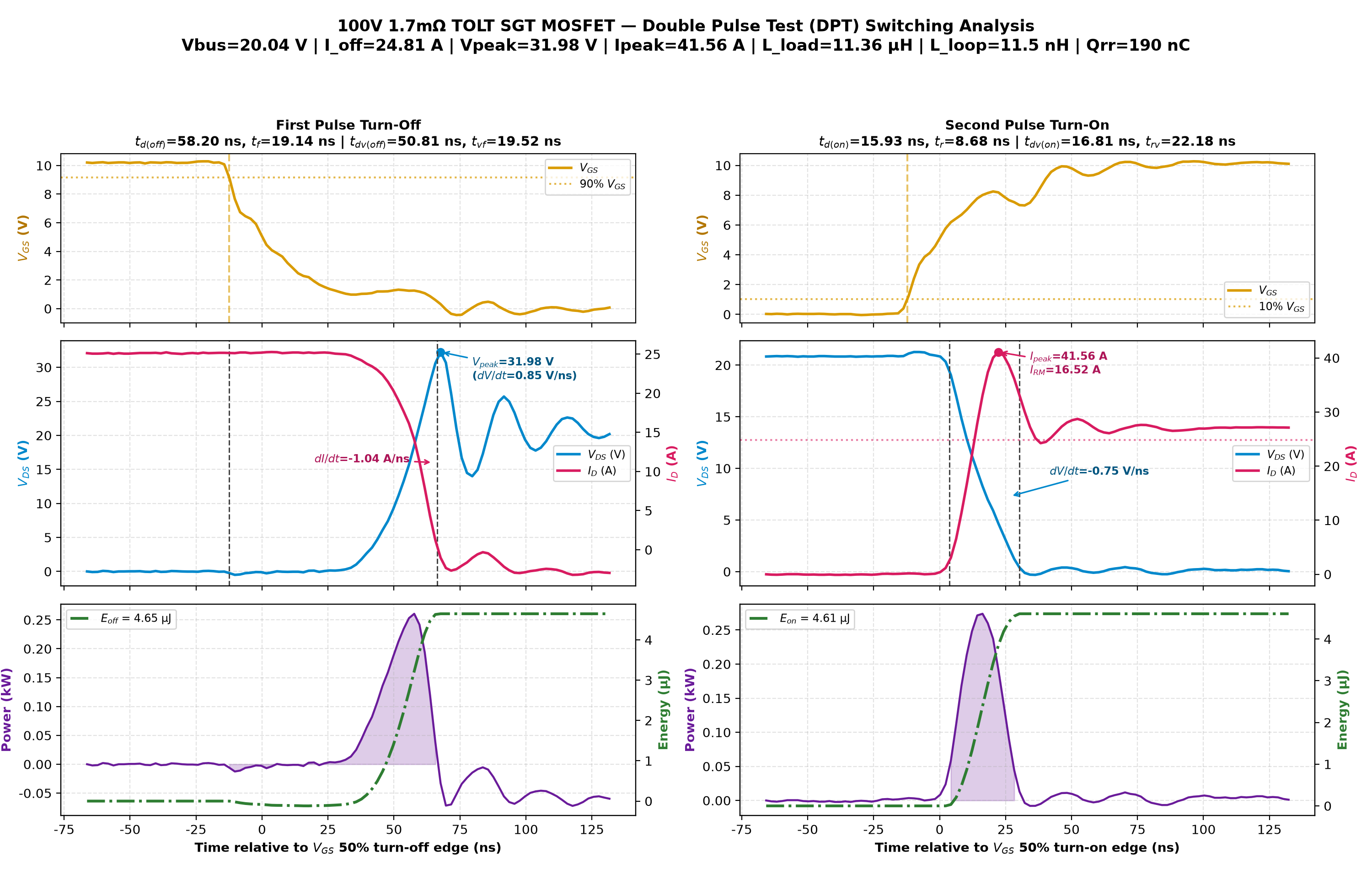

OUTPUT_FIG_NAME = "dpt-switching-analysis.png" # 与文章正文引用保持一致
DEFAULT_EXPORT_CSV = "dpt_processed.csv"
DEFAULT_EXPORT_METRICS = "dpt_metrics.csv"
PLOT_DPI = 200 # 300 会很清晰但文件大；200 足够博客使用
PLOT_SHOW = True # 运行完是否弹窗；无头环境可加 --no-show
MARKDOWN_TABLE = True # 终端是否额外打印可粘贴的 Markdown 表
# ---------- 0.2 通道校准 ----------
# 示波器硬件里已经给电流通道加了 +27 ns 的 Deskew，CSV 导出的是校准后的波形。
# 这里再留一个软件微调：正值让电流波形提前（左移），负值让它延后（右移）。
DESKEW_ID_NS = 0.0
HARDWARE_DESKEW_NS = 27.0 # 只用于报告标题，提醒读者硬件已经校过
AUTO_ZERO_BASELINE = True # 自动去掉探头零点/罗氏线圈零漂
INVERT_VGS = False # 探头接反时改成 True
INVERT_ID = False
INVERT_VDS = False
# ---------- 0.3 VGS 边沿识别 ----------
VGS_SMOOTH_NS = 10.0 # 移动平均窗宽（ns）；2 ns 采样时约 5 个点
EDGE_HYST_FRAC = 0.10 # 迟滞：门限上下各 10% 驱动幅度，防栅极振铃误触发
MIN_PULSE_NS = 200.0 # 小于这个宽度的高电平视为振铃，丢弃
MIN_DEAD_NS = 100.0 # 两个脉冲之间允许的最小低电平宽度
MIN_EDGE_SWING_V = 1.0 # VGS 高低差小于此值就认为没有有效脉冲
ALLOW_TRUNCATED_SECOND_PULSE = True # 记录在第二个脉冲中途结束时，允许 t_off2 = 记录终点
# ---------- 0.4 比例窗口 ----------
# 所有窗口都用“实测脉宽/死区的百分比”表示，不再写死 0.5us、4us 之类的偏移。
# 这样 1 us 窄脉冲和 50 us 宽脉冲都能用。
WIN_PRE_QUIET = (0.20, 0.80) # [记录起点, t_on1] 内取 20%~80%：Vbus、VGS/ID 零偏
WIN_PULSE1_MID = (0.30, 0.70) # 第一脉冲 30%~70%：VGS 高电平、VDS 导通压降
WIN_PULSE1_RAMP = (0.20, 0.80) # 第一脉冲 20%~80%：ID 线性拟合，估 L_load
WIN_PULSE1_END = (0.97, 0.998) # 关断前最后一段：取 I_off（避开下降沿）
WIN_DEAD_LATE = (0.50, 0.85) # 死区后段 50%~85%：VDS 续流平台、ID 零偏
WIN_PULSE2_EARLY = (0.005, 0.02) # 第二脉冲恢复后的短平台：I_load_on、Qrr 基线
WINDOW_MIN_SAMPLES = 20 # 比例窗口至少要有这么多点，否则自动向前扩展
# ---------- 0.5 分析窗口（示波器放大图的左右宽度） ----------
WINDOW_MODE = "auto" # "auto"：按实测开关时间自动定宽；"manual"：用下面两个值
WINDOW_PRE_NS = 60.0 # manual 模式：边沿前窗口
WINDOW_POST_NS = 160.0 # manual 模式：边沿后窗口
WINDOW_AUTO_PRE_FACTOR = 3.0 # auto：前窗 = 3 × 实测开关时间
WINDOW_AUTO_POST_FACTOR = 5.0 # auto：后窗 = 5 × 实测开关时间
WINDOW_AUTO_MIN_NS = 20.0 # auto 窗口下限
WINDOW_AUTO_MAX_FRAC = 0.30 # auto 窗口最多占相邻区间（脉宽/死区）的 30%
# ---------- 0.6 罗氏线圈数字补偿（默认关闭） ----------
# DIY 罗氏线圈的积分器不是理想积分器：电流阶跃后会出现“平台凸起”，
# 关断后会出现“低频下冲”。这里用一阶零极点滤波扣掉高通/交越失配分量：
#
# H(s) = 1 - droop_gain * (s*tau) / (1 + s*tau)
# = (1 + (1-droop_gain)*s*tau) / (1 + s*tau)
#
# 直流增益 = 1（不会把稳态电流整体放大），高频增益 = 1 - droop_gain。
# 在本文的实测数据上，tau=0.60 us、droop_gain=0.11 可以把开通后约 +2 A 的
# 平台凸起和关断后约 -2.7 A 的下冲压回 0 附近，同时不影响电流斜坡。
ENABLE_ROGOWSKI_COMP = False
ROGOWSKI_PRESET = "HQRocoil-Mini"
ROGOWSKI_PRESETS = {
"HQRocoil-Mini": {"tau_us": 0.60, "droop_gain": 0.11},
"ideal": {"tau_us": 0.60, "droop_gain": 0.00},
}
# ---------- 0.7 JEDEC 开关时间阈值（10%~90%） ----------
TH_TIME = {
# 开通：tdon/t_dv(on) 起点 = VGS 10%；tr/trv 终点 = 90%/10%
"vgs_on_start": 0.10,
"id_on_start": 0.10,
"id_on_end": 0.90,
"vds_on_start": 0.90,
"vds_on_end": 0.10,
# 关断：tdoff/t_dv(off) 起点 = VGS 90%；tf/tvf 终点 = 10%/90%
"vgs_off_start": 0.90,
"id_off_start": 0.90,
"id_off_end": 0.10,
"vds_off_start": 0.10,
"vds_off_end": 0.90,
}
# ---------- 0.8 开关损耗积分阈值（JEDEC） ----------
TH_LOSS = {
"eoff_start_ref": "VGS", # 可选 "VGS" 或 "VDS"
"eoff_start_pct": 0.90,
"eoff_end_id": 0.02,
"eon_start_ref": "ID", # 可选 "ID" 或 "VGS"
"eon_start_pct": 0.10,
"eon_end_vds": 0.02,
}
# ---------- 0.9 新增指标 ----------
L_LOAD_R2_MIN = 0.99 # 线性拟合优度低于此值时给出警告
QRR_BAND_ABS_A = 0.30 # Qrr 恢复结束判据：至少偏离基线 0.30 A
QRR_BAND_REL = 0.05 # 或偏离 5% 的负载电流（取较大者，避免被慢漂尾拖住）
QRR_SETTLE_NS = 50.0 # 回到基线并保持这么久，认为恢复结束
QRR_MAX_FRAC = 0.10 # Qrr 最多看第二脉宽的 10%
QRR_MAX_US = 1.0 # 且最多 1 us
IRM_MAX_FRAC = 0.05 # IRM 搜索窗口最多占 tp2 的 5%
IRM_MAX_US = 1.0
# ---------- 0.10 报告文字 ----------
DEVICE_NAME = "100V 1.7mΩ TOLT SGT MOSFET"
TEST_TITLE = "Double Pulse Test (DPT) Switching Analysis"
# ==============================================================================
# 1. 数据结构与通用工具
# ==============================================================================
class DptError(Exception):
"""分析过程中可以直接展示给用户的错误。"""
@dataclass
class ChannelCsv:
time: np.ndarray
value: np.ndarray
source: str
unit: str
meta: dict = field(default_factory=dict)
@dataclass
class DptData:
t: np.ndarray
vgs_raw: np.ndarray
id_raw: np.ndarray
vds_raw: np.ndarray
dt: float
fs: float
warnings: list[str] = field(default_factory=list)
@dataclass
class PulseTiming:
t_on1: float
t_off1: float
t_on2: float
t_off2: float
tp1: float
t_dead: float
tp2: float
truncated: bool = False
@dataclass
class Levels:
vgs_low: float
vgs_high: float
vbus: float
vds_on: float
vds_off: float
id_base_pre: float
id_base_dead: float
i_off: float
i_load_on: float
@dataclass
class Config:
smooth_ns: float = VGS_SMOOTH_NS
edge_hyst: float = EDGE_HYST_FRAC
min_pulse_ns: float = MIN_PULSE_NS
min_dead_ns: float = MIN_DEAD_NS
deskew_id_ns: float = DESKEW_ID_NS
auto_zero: bool = AUTO_ZERO_BASELINE
window_mode: str = WINDOW_MODE
window_pre_ns: float = WINDOW_PRE_NS
window_post_ns: float = WINDOW_POST_NS
rogowski: bool = ENABLE_ROGOWSKI_COMP
rogowski_preset: str = ROGOWSKI_PRESET
rogowski_tau_us: float | None = None
rogowski_gain: float | None = None
plot: bool = True
show: bool = PLOT_SHOW
out_dir: Path = Path(OUTPUT_DIR)
export_csv: Path | None = None
export_metrics: Path | None = None
verbose: bool = False
def _odd(n: int) -> int:
"""把移动平均点数变成奇数（保证窗口对称）。"""
n = max(3, int(round(n)))
return n if n % 2 == 1 else n + 1
def moving_average(y: np.ndarray, n: int) -> np.ndarray:
"""edge padding 的移动平均，避免首尾被零填充拉出假边沿。"""
n = _odd(n)
p = n // 2
y_pad = np.pad(np.asarray(y, dtype=float), p, mode="edge")
return np.convolve(y_pad, np.ones(n) / n, mode="valid")
def apply_deskew(t: np.ndarray, y: np.ndarray, skew_ns: float) -> np.ndarray:
"""把电流波形平移 skew_ns：正值左移（提前），负值右移（延后）。"""
if abs(skew_ns) < 1e-9:
return y.copy()
return np.interp(t, t + skew_ns * 1e-9, y)
def find_crossing(
t: np.ndarray,
y: np.ndarray,
level: float,
direction: str = "rising",
t_min: float | None = None,
t_max: float | None = None,
) -> float | None:
"""亚采样线性内插找阈值交点；找不到返回 None（不再把 NaN 传下去）。"""
mask = np.ones_like(t, dtype=bool)
if t_min is not None:
mask &= t >= t_min
if t_max is not None:
mask &= t <= t_max
ts, ys = t[mask], y[mask]
if len(ts) < 2:
return None
if direction == "rising":
idx = np.where((ys[:-1] < level) & (ys[1:] >= level))[0]
else:
idx = np.where((ys[:-1] > level) & (ys[1:] <= level))[0]
if len(idx) == 0:
return None
i = idx[0]
denom = ys[i + 1] - ys[i]
if abs(denom) < 1e-15:
return float(ts[i])
return float(ts[i] + (level - ys[i]) / denom * (ts[i + 1] - ts[i]))
def integrate_energy_uJ(
t: np.ndarray,
p: np.ndarray,
t_start: float | None,
t_end: float | None,
) -> tuple[float | None, np.ndarray | None]:
"""在 [t_start, t_end] 上对功率做高密度梯形积分，返回 (能量 uJ, 累计能量曲线)。"""
if t_start is None or t_end is None:
return None, None
if not (np.isfinite(t_start) and np.isfinite(t_end)) or t_end <= t_start:
return None, None
t_start = max(float(t_start), float(t[0]))
t_end = min(float(t_end), float(t[-1]))
if t_end <= t_start:
return None, None
n = max(1000, int((t_end - t_start) / np.median(np.diff(t))) + 1)
t_dense = np.linspace(t_start, t_end, n)
p_dense = np.interp(t_dense, t, p)
e_dense = cumulative_trapezoid(p_dense, t_dense, initial=0.0) * 1e6
e_curve = np.zeros_like(t)
m = (t >= t_start) & (t <= t_end)
e_curve[m] = np.interp(t[m], t_dense, e_dense)
e_curve[t > t_end] = e_dense[-1]
return float(e_dense[-1]), e_curve
# ==============================================================================
# 2. CSV 解析与三通道对齐
# ==============================================================================
def parse_siglent_csv(path: Path) -> ChannelCsv:
"""解析鼎阳单通道 CSV：前 50 行找 Source / Second 表头。"""
path = Path(path)
if not path.exists():
raise DptError(f"找不到文件：{path}")
header_row = None
source = path.stem
meta: dict[str, str] = {}
with path.open("r", encoding="utf-8-sig", errors="ignore") as f:
for idx, line in enumerate(f):
if idx >= 50:
break
parts = [p.strip() for p in line.strip().split(",")]
if len(parts) >= 2:
key = parts[0].lower()
meta[parts[0]] = parts[1]
if key == "source":
source = parts[1]
elif key == "second":
header_row = idx
break
if header_row is None:
raise DptError(f"{path.name}：找不到 `Second,Value` 表头，可能不是鼎阳 CSV")
df = pd.read_csv(path, skiprows=header_row, encoding="utf-8-sig")
if df.shape[1] < 2:
raise DptError(f"{path.name}：数据列不足（需要时间列 + 数值列）")
t = df.iloc[:, 0].to_numpy(dtype=float)
value = df.iloc[:, 1].to_numpy(dtype=float)
# 少量 NaN 用线性插值补上；大量 NaN 说明导出有问题。
bad = ~np.isfinite(value)
if bad.any():
if bad.mean() > 0.01 or bad[0] or bad[-1]:
raise DptError(f"{path.name}：数值列有 {bad.sum()} 个无效点，无法可靠分析")
good = np.arange(len(value))[~bad]
value[bad] = np.interp(np.arange(len(value))[bad], good, value[~bad])
unit = meta.get("Vertical Units", "") or meta.get("Vertical units", "")
return ChannelCsv(time=t, value=value, source=source.upper(), unit=unit, meta=meta)
def _common_time_axis(channels: list[ChannelCsv], min_samples: int = 1000) -> tuple[np.ndarray, list[np.ndarray], list[str]]:
"""把三通道对齐到同一条均匀时间轴；必要时线性重采样。"""
warnings: list[str] = []
t0, t1 = channels[0].time, channels[0].time
dt_ref = float(np.median(np.diff(t0)))
same = True
for ch in channels[1:]:
if len(ch.time) != len(t0) or abs(np.median(np.diff(ch.time)) - dt_ref) > 1e-3 * abs(dt_ref):
same = False
if not np.allclose(ch.time, t0, rtol=0.0, atol=max(1e-12, abs(dt_ref) * 1e-3)):
same = False
if same:
return t0, [ch.value for ch in channels], warnings
start = max(float(ch.time[0]) for ch in channels)
end = min(float(ch.time[-1]) for ch in channels)
if end <= start:
raise DptError("三份 CSV 的时间范围没有重叠，无法对齐")
n = int((end - start) / abs(dt_ref)) + 1
if n < min_samples:
raise DptError(f"三份 CSV 的公共时间区间只有 {n} 点，少于 {min_samples} 点")
t = np.linspace(start, end, n)
vals = [np.interp(t, ch.time, ch.value) for ch in channels]
warnings.append(
f"三份 CSV 的时间轴/采样间隔不一致，已重采样到公共区间 "
f"[{start*1e6:.3f}, {end*1e6:.3f}] us（{n} 点）"
)
return t, vals, warnings
def load_waveforms(paths: dict[str, Path], cfg: Config) -> DptData:
"""读取 C1/C2/C3，做极性、deskew、时间对齐和基本校验。"""
channels = [parse_siglent_csv(paths[k]) for k in (CH_VGS, CH_ID, CH_VDS)]
warnings: list[str] = []
t, vals, more = _common_time_axis(channels)
warnings.extend(more)
vgs, i_d, vds = vals
if INVERT_VGS:
vgs = -vgs
if INVERT_ID:
i_d = -i_d
if INVERT_VDS:
vds = -vds
if abs(cfg.deskew_id_ns) > 1e-9:
i_d = apply_deskew(t, i_d, cfg.deskew_id_ns)
warnings.append(f"ID 通道软件 deskew：{cfg.deskew_id_ns:+.1f} ns")
dt = float(np.median(np.diff(t)))
if dt <= 0:
raise DptError("时间轴不是递增的，检查 CSV 第一列")
if t.size < 100:
raise DptError(f"采样点太少（{t.size} 点），至少需要 100 点")
return DptData(t=t, vgs_raw=vgs, id_raw=i_d, vds_raw=vds, dt=dt, fs=1.0 / dt, warnings=warnings)
# ==============================================================================
# 3. Rogowski 数字补偿
# ==============================================================================
def _rogowski_params(cfg: Config) -> tuple[float, float]:
preset = ROGOWSKI_PRESETS.get(cfg.rogowski_preset)
if preset is None:
raise DptError(f"未知的 Rogowski 预设：{cfg.rogowski_preset}；可选 {list(ROGOWSKI_PRESETS)}")
tau_us = cfg.rogowski_tau_us if cfg.rogowski_tau_us is not None else preset["tau_us"]
gain = cfg.rogowski_gain if cfg.rogowski_gain is not None else preset["droop_gain"]
return float(tau_us), float(gain)
def compensate_rogowski(t: np.ndarray, i_raw: np.ndarray, cfg: Config) -> tuple[np.ndarray, list[str]]:
"""
一阶零极点补偿：H(s) = 1 - g·sτ/(1+sτ)。
用双线性变换离散，再用 lfilter 实现；返回补偿后的电流和提示信息。
"""
warnings: list[str] = []
if not cfg.rogowski:
return i_raw.copy(), warnings
tau_us, gain = _rogowski_params(cfg)
if tau_us <= 0 or gain <= 0:
warnings.append("Rogowski 补偿参数无效（tau/gain <= 0），已跳过")
return i_raw.copy(), warnings
tau = tau_us * 1e-6
fs = 1.0 / float(np.median(np.diff(t)))
# H(s) = ((1-g)·τ·s + 1) / (τ·s + 1)
b, a = bilinear([(1.0 - gain) * tau, 1.0], [tau, 1.0], fs)
zi = lfilter_zi(b, a) * i_raw[0]
i_comp, _ = lfilter(b, a, i_raw, zi=zi)
if not np.all(np.isfinite(i_comp)):
raise DptError("Rogowski 补偿后出现 NaN/Inf，检查 tau/gain 或采样率")
limit = 5.0 * max(float(np.max(np.abs(i_raw))), 1e-9)
if np.max(np.abs(i_comp - i_raw)) > limit:
warnings.append("Rogowski 补偿改动量异常大（>5×原始幅值），建议检查预设")
warnings.append(
f"Rogowski 补偿已开启：{cfg.rogowski_preset}（tau={tau_us:.2f} us, gain={gain:.2f}）"
)
return i_comp, warnings
# ==============================================================================
# 4. 双脉冲边沿识别
# ==============================================================================
def _interp_mid(t: np.ndarray, y: np.ndarray, i_left: int, i_right: int, level: float) -> float:
"""在相邻两点间线性插值出 50% 交点。"""
denom = y[i_right] - y[i_left]
if abs(denom) < 1e-15:
return float(t[i_left])
ratio = (level - y[i_left]) / denom
return float(t[i_left] + ratio * (t[i_right] - t[i_left]))
def detect_pulses(t: np.ndarray, vgs: np.ndarray, cfg: Config) -> tuple[PulseTiming, list[str]]:
"""平滑 + 迟滞 + 最小脉宽配对，稳健找出双脉冲的 4 个边沿。"""
warnings: list[str] = []
n_smooth = _odd(round(cfg.smooth_ns * 1e-9 / float(np.median(np.diff(t)))))
ys = moving_average(vgs, n_smooth)
low = float(np.percentile(ys, 5))
high = float(np.percentile(ys, 95))
if high - low < MIN_EDGE_SWING_V:
raise DptError(
f"VGS 高低差只有 {high - low:.3f} V（< {MIN_EDGE_SWING_V} V），"
"看不到有效驱动脉冲；检查通道映射/探头。"
)
mid = 0.5 * (low + high)
span = high - low
hi_thr = mid + cfg.edge_hyst * span
lo_thr = mid - cfg.edge_hyst * span
state = 1 if ys[0] >= mid else 0
if state == 1:
warnings.append("记录开始时 VGS 已经为高，第一脉冲可能不完整")
edges: list[tuple[str, float]] = []
for i in range(1, len(ys)):
if state == 0 and ys[i] >= hi_thr:
j = i - 1
while j > 0 and ys[j] > mid:
j -= 1
edges.append(("R", _interp_mid(t, ys, j, j + 1, mid)))
state = 1
elif state == 1 and ys[i] <= lo_thr:
j = i - 1
while j > 0 and ys[j] < mid:
j -= 1
edges.append(("F", _interp_mid(t, ys, j, j + 1, mid)))
state = 0
# 配对：上升沿 + 下降沿 = 一个脉冲；太窄的当振铃丢掉。
pulses: list[tuple[float, float, bool]] = []
pending: float | None = None
for kind, tc in edges:
if kind == "R":
if pending is not None:
warnings.append("发现未配对的上升沿，保留最新一个")
pending = tc
else:
if pending is None:
warnings.append("发现无配对上升沿的下降沿，忽略")
continue
width = tc - pending
if width >= cfg.min_pulse_ns * 1e-9:
pulses.append((pending, tc, False))
else:
warnings.append(f"丢弃宽度 {width*1e9:.1f} ns 的疑似振铃")
pending = None
if pending is not None and ALLOW_TRUNCATED_SECOND_PULSE and pulses:
pulses.append((pending, float(t[-1]), True))
warnings.append("记录结束时 VGS 仍为高，第二脉冲按截断处理（t_off2 = 记录终点）")
if len(pulses) < 2:
widths = ", ".join(f"{(b-a)*1e9:.0f}ns" for a, b, _ in pulses) or "无"
raise DptError(
f"只找到 {len(pulses)} 个有效脉冲（宽度：{widths}），需要 2 个。"
f"可尝试 --smooth-ns {max(2, cfg.smooth_ns/2):.0f}、"
f"--min-pulse-ns {max(20, cfg.min_pulse_ns/4):.0f}，"
"或手工指定 --t-on1-us 等四个时间。"
)
if len(pulses) > 2:
warnings.append(f"找到 {len(pulses)} 个有效脉冲，只取前两个")
p1, p2 = pulses[0], pulses[1]
t_on1, t_off1, _ = p1
t_on2, t_off2, truncated = p2
tp1, t_dead, tp2 = t_off1 - t_on1, t_on2 - t_off1, t_off2 - t_on2
if not (t_on1 < t_off1 < t_on2 < t_off2):
raise DptError("识别到的脉冲顺序不对（要求 t_on1 < t_off1 < t_on2 < t_off2）")
if tp1 < cfg.min_pulse_ns * 1e-9 or tp2 < cfg.min_pulse_ns * 1e-9:
raise DptError(f"脉冲宽度过短（tp1={tp1*1e9:.0f} ns, tp2={tp2*1e9:.0f} ns）")
if t_dead < cfg.min_dead_ns * 1e-9:
raise DptError(
f"两脉冲之间只有 {t_dead*1e9:.0f} ns 低电平（< {cfg.min_dead_ns:.0f} ns），"
"可能是振铃被当成了第二个脉冲"
)
return PulseTiming(t_on1, t_off1, t_on2, t_off2, tp1, t_dead, tp2, truncated), warnings
def manual_timing(args, t: np.ndarray) -> PulseTiming | None:
"""四个 --t-*-us 都给齐时直接使用，跳过自动识别。"""
vals = [args.t_on1_us, args.t_off1_us, args.t_on2_us, args.t_off2_us]
if any(v is None for v in vals):
return None
t_on1, t_off1, t_on2, t_off2 = (float(v) * 1e-6 for v in vals)
return PulseTiming(
t_on1, t_off1, t_on2, t_off2,
t_off1 - t_on1, t_on2 - t_off1, t_off2 - t_on2, False,
)
# ==============================================================================
# 5. 比例窗口、电平与基线
# ==============================================================================
def _ratio_window(t0: float, t1: float, fracs: tuple[float, float]) -> tuple[float, float]:
return t0 + fracs[0] * (t1 - t0), t0 + fracs[1] * (t1 - t0)
def _window_ok(t: np.ndarray, a: float, b: float, min_samples: int) -> bool:
return b > a and int(np.count_nonzero((t >= a) & (t <= b))) >= min_samples
def _median_window(t: np.ndarray, y: np.ndarray, a: float, b: float) -> float | None:
m = (t >= a) & (t <= b)
if not m.any():
return None
return float(np.median(y[m]))
def _expand_backward(t: np.ndarray, a: float, b: float, min_samples: int) -> tuple[float, float]:
"""窗口点太少时向前扩展，保证至少 min_samples 个点。"""
idx = np.where((t >= a) & (t <= b))[0]
if len(idx) >= min_samples:
return a, b
start = max(0, idx[0] - (min_samples - len(idx))) if len(idx) else 0
return float(t[start]), b
def compute_levels(data: DptData, timing: PulseTiming, cfg: Config) -> tuple[Levels, list[str]]:
"""用比例窗口提取稳态电平；所有窗口都随实测脉宽缩放。"""
t, vgs, i_d, vds = data.t, data.vgs_raw, data.id_raw, data.vds_raw
warnings: list[str] = []
a, b = _ratio_window(float(t[0]), timing.t_on1, WIN_PRE_QUIET)
a, b = _expand_backward(t, a, b, WINDOW_MIN_SAMPLES)
vgs_low = _median_window(t, vgs, a, b)
vbus = _median_window(t, vds, a, b)
id_base_pre = _median_window(t, i_d, a, b)
a, b = _ratio_window(timing.t_on1, timing.t_off1, WIN_PULSE1_MID)
vgs_high = _median_window(t, vgs, a, b)
vds_on = _median_window(t, vds, a, b)
a, b = _ratio_window(timing.t_off1, timing.t_on2, WIN_DEAD_LATE)
vds_off = _median_window(t, vds, a, b)
id_base_dead = _median_window(t, i_d, a, b)
a, b = _ratio_window(timing.t_on1, timing.t_off1, WIN_PULSE1_END)
a, b = _expand_backward(t, a, b, WINDOW_MIN_SAMPLES)
i_off = _median_window(t, i_d, a, b)
a, b = _ratio_window(timing.t_on2, timing.t_off2, WIN_PULSE2_EARLY)
a, b = _expand_backward(t, a, b, WINDOW_MIN_SAMPLES)
i_load_on = _median_window(t, i_d, a, b)
missing = [name for name, val in (
("VGS 低电平", vgs_low), ("VGS 高电平", vgs_high),
("Vbus", vbus), ("VDS 导通压降", vds_on), ("VDS 续流平台", vds_off),
("ID 第一脉冲零偏", id_base_pre), ("ID 死区零偏", id_base_dead),
("I_off", i_off), ("I_load_on", i_load_on),
) if val is None]
if missing:
raise DptError(f"以下电平的窗口内没有采样点：{', '.join(missing)}")
if vgs_high - vgs_low < MIN_EDGE_SWING_V:
raise DptError("VGS 高电平与低电平几乎相同，检查通道顺序/探头")
if vds_off - vds_on < 1.0:
raise DptError("VDS 关断平台与导通压降差太小，检查 CH3 是否接反")
# I_off 用第一脉冲前段的零偏；I_load_on 用死区零偏。
# 关闭 AUTO_ZERO_BASELINE 时，零偏强制为 0（保留 VDS 的导通压降归零，
# 否则开关损耗积分会把 Rds(on) 的直流压降算进去）。
vgs_zero = vgs_low if cfg.auto_zero else 0.0
id_zero_pre = id_base_pre if cfg.auto_zero else 0.0
id_zero_dead = id_base_dead if cfg.auto_zero else 0.0
i_off_cal = i_off - id_zero_pre
i_load_cal = i_load_on - id_zero_dead
if i_off_cal <= 0:
raise DptError(f"关断电流算出来是 {i_off_cal:.2f} A，检查 ID 极性（可设 INVERT_ID=True）")
if i_load_cal <= 0:
warnings.append(f"第二脉冲恢复后的电流只有 {i_load_cal:.2f} A，Qrr 基线可能不可靠")
return Levels(
vgs_low=vgs_zero, vgs_high=vgs_high, vbus=vbus, vds_on=vds_on, vds_off=vds_off,
id_base_pre=id_zero_pre, id_base_dead=id_zero_dead,
i_off=i_off_cal, i_load_on=i_load_cal,
), warnings
# ==============================================================================
# 6. 开关瞬态与损耗
# ==============================================================================
def _auto_window(pre: float, post: float, timing: PulseTiming, cfg: Config) -> tuple[float, float]:
"""auto：用实测开关时间定宽，并限制在相邻区间内。"""
limit = min(timing.tp1, timing.t_dead, timing.tp2)
pre_min = WINDOW_AUTO_MIN_NS * 1e-9
pre_out = min(max(pre, pre_min), WINDOW_AUTO_MAX_FRAC * limit)
post_out = min(max(post, max(2.0 * pre_out, 40e-9)), WINDOW_AUTO_MAX_FRAC * limit)
return pre_out, post_out
def compute_transient(
data: DptData,
timing: PulseTiming,
levels: Levels,
pre: float,
post: float,
) -> tuple[dict, dict]:
"""计算关断/开通两组交叉点、峰值、损耗和电流斜率。"""
t, vgs, i_d, vds = data.t, data.vgs_raw, data.id_raw, data.vds_raw
vgs_cal = vgs - levels.vgs_low
vds_cal = vds - levels.vds_on
id_off = i_d - levels.id_base_pre
id_on = i_d - levels.id_base_dead
vgs_amp = levels.vgs_high - levels.vgs_low
vds_amp = levels.vds_off - levels.vds_on
m_off = (t >= timing.t_off1 - pre) & (t <= timing.t_off1 + post)
m_on = (t >= timing.t_on2 - pre) & (t <= timing.t_on2 + post)
tw_off, vg_off, vd_off, idc_off = t[m_off], vgs_cal[m_off], vds_cal[m_off], id_off[m_off]
tw_on, vg_on, vd_on, idc_on = t[m_on], vgs_cal[m_on], vds_cal[m_on], id_on[m_on]
out: dict = {}
ctx: dict = {
"pre": pre, "post": post,
"tw_off": tw_off, "vg_off": vg_off, "vd_off": vd_off, "id_off": idc_off,
"tw_on": tw_on, "vg_on": vg_on, "vd_on": vd_on, "id_on": idc_on,
"vgs_amp": vgs_amp, "vds_amp": vds_amp,
}
# ---------------- 第一脉冲关断 ----------------
t_vgs_90 = find_crossing(tw_off, vg_off, TH_TIME["vgs_off_start"] * vgs_amp, "falling")
t_id_90 = find_crossing(tw_off, idc_off, TH_TIME["id_off_start"] * levels.i_off, "falling", t_min=t_vgs_90)
t_id_10 = find_crossing(tw_off, idc_off, TH_TIME["id_off_end"] * levels.i_off, "falling", t_min=t_id_90)
t_vds_10 = find_crossing(tw_off, vd_off, TH_TIME["vds_off_start"] * vds_amp, "rising", t_min=t_vgs_90)
t_vds_90 = find_crossing(tw_off, vd_off, TH_TIME["vds_off_end"] * vds_amp, "rising", t_min=t_vds_10)
out.update({
"t_vgs_90_off": t_vgs_90, "t_id_90_off": t_id_90, "t_id_10_off": t_id_10,
"t_vds_10_off": t_vds_10, "t_vds_90_off": t_vds_90,
})
out["tdoff_ns"] = (t_id_90 - t_vgs_90) * 1e9 if t_id_90 is not None and t_vgs_90 is not None else None
out["tf_ns"] = (t_id_10 - t_id_90) * 1e9 if t_id_10 is not None and t_id_90 is not None else None
out["tdvoff_ns"] = (t_vds_10 - t_vgs_90) * 1e9 if t_vds_10 is not None and t_vgs_90 is not None else None
out["tvf_ns"] = (t_vds_90 - t_vds_10) * 1e9 if t_vds_90 is not None and t_vds_10 is not None else None
out["didt_off_A_ns"] = (
(TH_TIME["id_off_start"] - TH_TIME["id_off_end"]) * levels.i_off / out["tf_ns"]
if out["tf_ns"] and out["tf_ns"] > 0 else None
)
out["dvdt_off_V_ns"] = (
(TH_TIME["vds_off_end"] - TH_TIME["vds_off_start"]) * vds_amp / out["tvf_ns"]
if out["tvf_ns"] and out["tvf_ns"] > 0 else None
)

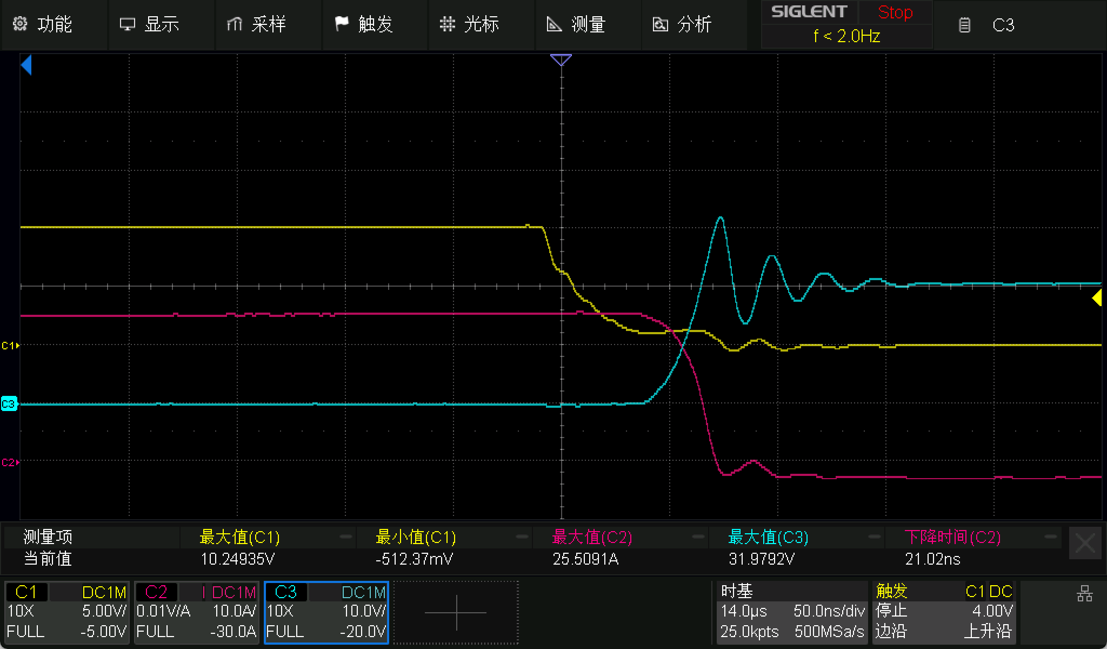

# Vpeak 用原始 VDS（绝对值），避免零点校准影响过冲读数。
out["vpeak_V"] = float(np.max(vds[m_off]))
out["vpeak_over_V"] = out["vpeak_V"] - levels.vbus
out["t_vpeak"] = float(tw_off[int(np.argmax(vds[m_off]))])
t_eoff_end = find_crossing(
tw_off, idc_off, TH_LOSS["eoff_end_id"] * levels.i_off, "falling", t_min=t_id_90
)
t_eoff_vgs = find_crossing(
tw_off, vg_off, TH_LOSS["eoff_start_pct"] * vgs_amp, "falling"
) if TH_LOSS["eoff_start_ref"].upper() == "VGS" else None
t_eoff_vds = find_crossing(
tw_off, vd_off, TH_LOSS["eoff_start_pct"] * vds_amp, "rising", t_min=t_vgs_90
) if TH_LOSS["eoff_start_ref"].upper() == "VDS" else None
t_eoff_s = t_eoff_vgs if t_eoff_vgs is not None else t_eoff_vds
p_off = vd_off * idc_off
eoff, eoff_curve = integrate_energy_uJ(tw_off, p_off, t_eoff_s, t_eoff_end)
eoff_vgs, _ = integrate_energy_uJ(
tw_off, p_off,
find_crossing(tw_off, vg_off, TH_TIME["vgs_off_start"] * vgs_amp, "falling"),
t_eoff_end,
)
eoff_vds, _ = integrate_energy_uJ(
tw_off, p_off,
find_crossing(tw_off, vd_off, TH_TIME["vds_off_start"] * vds_amp, "rising", t_min=t_vgs_90),
t_eoff_end,
)
out.update({
"eoff_uJ": eoff, "eoff_vgs_uJ": eoff_vgs, "eoff_vds_uJ": eoff_vds,
"t_eoff_s": t_eoff_s, "t_eoff_end": t_eoff_end,
})
ctx["eoff_curve"] = eoff_curve

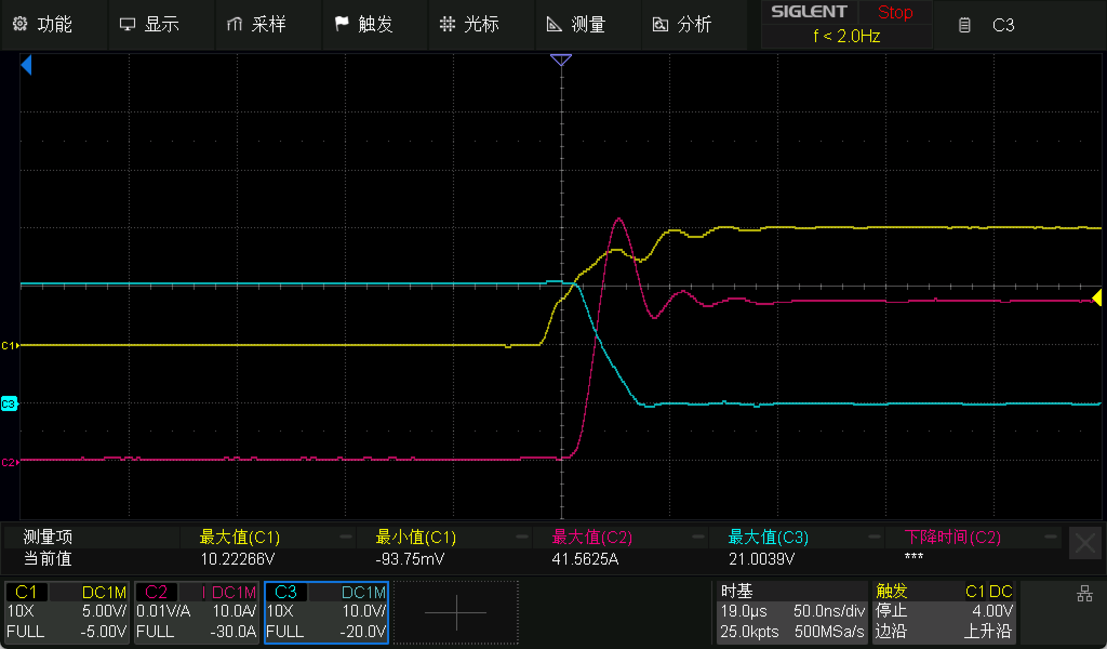

# ---------------- 第二脉冲开通 ----------------
i_load = levels.i_off # 物理负载电流：第一脉冲关断时的电流
t_vgs_10 = find_crossing(tw_on, vg_on, TH_TIME["vgs_on_start"] * vgs_amp, "rising")
t_id_10 = find_crossing(tw_on, idc_on, TH_TIME["id_on_start"] * i_load, "rising", t_min=t_vgs_10)
t_id_90 = find_crossing(tw_on, idc_on, TH_TIME["id_on_end"] * i_load, "rising", t_min=t_id_10)
t_vds_90 = find_crossing(tw_on, vd_on, TH_TIME["vds_on_start"] * vds_amp, "falling", t_min=t_vgs_10)
t_vds_10 = find_crossing(tw_on, vd_on, TH_TIME["vds_on_end"] * vds_amp, "falling", t_min=t_vds_90)
out.update({
"t_vgs_10_on": t_vgs_10, "t_id_10_on": t_id_10, "t_id_90_on": t_id_90,
"t_vds_90_on": t_vds_90, "t_vds_10_on": t_vds_10,
})
out["tdon_ns"] = (t_id_10 - t_vgs_10) * 1e9 if t_id_10 is not None and t_vgs_10 is not None else None
out["tr_ns"] = (t_id_90 - t_id_10) * 1e9 if t_id_90 is not None and t_id_10 is not None else None
out["tdvon_ns"] = (t_vds_90 - t_vgs_10) * 1e9 if t_vds_90 is not None and t_vgs_10 is not None else None
out["trv_ns"] = (t_vds_10 - t_vds_90) * 1e9 if t_vds_10 is not None and t_vds_90 is not None else None
out["didt_on_A_ns"] = (
(TH_TIME["id_on_end"] - TH_TIME["id_on_start"]) * i_load / out["tr_ns"]
if out["tr_ns"] and out["tr_ns"] > 0 else None
)
out["dvdt_on_V_ns"] = (
(TH_TIME["vds_on_start"] - TH_TIME["vds_on_end"]) * vds_amp / out["trv_ns"]
if out["trv_ns"] and out["trv_ns"] > 0 else None
)
# Ipeak 只在第二开通后的短窗口里找，避免把后面电感电流的线性上升当成 IRM。
irm_end = timing.t_on2 + min(IRM_MAX_FRAC * timing.tp2, IRM_MAX_US * 1e-6)
m_ipk = (t >= timing.t_on2) & (t <= irm_end)
if int(m_ipk.sum()) < 2:
m_ipk = m_on
out["ipeak_A"] = float(np.max(i_d[m_ipk]))
out["irm_A"] = out["ipeak_A"] - levels.id_base_pre - levels.i_off
out["irm_plat_A"] = out["ipeak_A"] - (levels.i_load_on + levels.id_base_dead)
out["t_ipeak"] = float(t[m_ipk][int(np.argmax(i_d[m_ipk]))])
ctx["irm_end"] = irm_end
t_eon_end = find_crossing(
tw_on, vd_on, TH_LOSS["eon_end_vds"] * vds_amp, "falling", t_min=t_vds_90
)
# 注意：这里直接用已经求出的 t_id_10，不能再次搜索“10% 上升交点”，否则会返回 None。
if TH_LOSS["eon_start_ref"].upper() == "ID":
t_eon_s = t_id_10
else:
t_eon_s = find_crossing(tw_on, vg_on, TH_LOSS["eon_start_pct"] * vgs_amp, "rising")
p_on = vd_on * idc_on
eon, eon_curve = integrate_energy_uJ(tw_on, p_on, t_eon_s, t_eon_end)
eon_id, _ = integrate_energy_uJ(tw_on, p_on, t_id_10, t_eon_end)
eon_vgs, _ = integrate_energy_uJ(
tw_on, p_on,
find_crossing(tw_on, vg_on, TH_TIME["vgs_on_start"] * vgs_amp, "rising"),
t_eon_end,
)
out.update({
"eon_uJ": eon, "eon_id_uJ": eon_id, "eon_vgs_uJ": eon_vgs,
"t_eon_s": t_eon_s, "t_eon_end": t_eon_end,
})
ctx["eon_curve"] = eon_curve
out["etotal_uJ"] = (
out["eon_uJ"] + out["eoff_uJ"]
if out["eon_uJ"] is not None and out["eoff_uJ"] is not None else None
)
return out, ctx
def estimate_auto_window(data: DptData, timing: PulseTiming, levels: Levels, cfg: Config) -> tuple[float, float, list[str]]:
"""两遍测量：先用粗窗口估开关时间，再按 3×/5× 开关时间定最终窗口。"""
warnings: list[str] = []
if cfg.window_mode == "manual":
return cfg.window_pre_ns * 1e-9, cfg.window_post_ns * 1e-9, warnings
coarse = max(20e-9, 0.05 * min(timing.tp1, timing.t_dead, timing.tp2))
rough, _ = compute_transient(data, timing, levels, coarse, 2.0 * coarse)
candidates = [
abs(rough.get(k)) for k in ("tr_ns", "tf_ns", "trv_ns", "tvf_ns")
if rough.get(k) is not None and np.isfinite(rough[k])
]
t_sw = max(candidates) * 1e-9 if candidates else 0.02 * min(timing.tp1, timing.tp2)
pre, post = _auto_window(
max(WINDOW_AUTO_MIN_NS * 1e-9, WINDOW_AUTO_PRE_FACTOR * t_sw),
max(WINDOW_AUTO_MIN_NS * 1e-9, WINDOW_AUTO_POST_FACTOR * t_sw),
timing, cfg,
)
return pre, post, warnings
# ==============================================================================
# 7. 新增指标：L_load / L_loop / Qrr
# ==============================================================================
def fit_ramp(t: np.ndarray, y: np.ndarray, a: float, b: float) -> tuple[float, float, float] | None:
"""在 [a,b] 内对 y(t) 做一次线性拟合，返回 (斜率 A/s, 截距 A, R²)。"""
m = (t >= a) & (t <= b)
if int(m.sum()) < 10:
return None
ts, ys = t[m], y[m]
slope, intercept = np.polyfit(ts, ys, 1)
pred = slope * ts + intercept
ss_res = float(np.sum((ys - pred) ** 2))
ss_tot = float(np.sum((ys - np.mean(ys)) ** 2))
r2 = 1.0 - ss_res / ss_tot if ss_tot > 1e-15 else 0.0
return float(slope), float(intercept), r2
def estimate_l_load(t: np.ndarray, id_off: np.ndarray, timing: PulseTiming, levels: Levels) -> tuple[float | None, float | None]:
"""L_load = V_L / (dI/dt)；V_L 用 Vbus - VDS_on，拟合窗口取第一脉冲 20%~80%。"""
a, b = _ratio_window(timing.t_on1, timing.t_off1, WIN_PULSE1_RAMP)
fit = fit_ramp(t, id_off, a, b)
if fit is None:
return None, None
slope, _intercept, r2 = fit
if slope <= 0:
return None, r2
v_l = levels.vbus - levels.vds_on
return float(v_l / slope), r2
def estimate_qrr(
t: np.ndarray,
id_on: np.ndarray,
timing: PulseTiming,
levels: Levels,
cfg: Config,
) -> tuple[float | None, float | None, float | None, bool]:
"""
Qrr = ∫ max(ID - I_plateau, 0) dt，从第二开通到恢复结束。
返回 (Qrr nC, 恢复结束时刻, 峰值时刻, 是否被窗口截断)。
"""
base = levels.i_load_on
band = max(QRR_BAND_ABS_A, QRR_BAND_REL * abs(base))
t_end_limit = timing.t_on2 + min(QRR_MAX_FRAC * timing.tp2, QRR_MAX_US * 1e-6)
m = (t >= timing.t_on2) & (t <= t_end_limit)
if int(m.sum()) < 10:
return None, None, None, True
tt, yy = t[m], id_on[m]
dev = yy - base
ipk_rel = int(np.argmax(dev))
t_peak = float(tt[ipk_rel])
if dev[ipk_rel] <= band:
return 0.0, t_peak, t_peak, False
bad = np.abs(dev) > band
after = np.where(bad & (tt > t_peak))[0]
if len(after) == 0:
t_rr_end = t_peak + QRR_SETTLE_NS * 1e-9
truncated = False
else:
t_rr_end = float(tt[after[-1]] + QRR_SETTLE_NS * 1e-9)
truncated = bool(tt[after[-1]] >= t_end_limit - 2 * np.median(np.diff(t)))
t_rr_end = min(t_rr_end, float(tt[-1]))
m_int = (t >= timing.t_on2) & (t <= t_rr_end)
if int(m_int.sum()) < 2:
return None, t_rr_end, t_peak, truncated
q_c = float(trapezoid(np.maximum(id_on[m_int] - base, 0.0), t[m_int]))
return q_c * 1e9, t_rr_end, t_peak, truncated
# ==============================================================================
# 8. 汇总计算
# ==============================================================================
def analyze(data: DptData, timing: PulseTiming, cfg: Config) -> tuple[dict, dict, Levels, list[str]]:
warnings = list(data.warnings)
levels, w = compute_levels(data, timing, cfg)
warnings.extend(w)
pre, post, w = estimate_auto_window(data, timing, levels, cfg)
warnings.extend(w)
metrics, ctx = compute_transient(data, timing, levels, pre, post)
id_off = data.id_raw - levels.id_base_pre
id_on = data.id_raw - levels.id_base_dead
l_load, r2 = estimate_l_load(data.t, id_off, timing, levels)
if l_load is not None and r2 is not None and r2 < L_LOAD_R2_MIN:
warnings.append(f"L_load 拟合 R²={r2:.4f} < {L_LOAD_R2_MIN}，结果仅供参考")
didt = metrics.get("didt_off_A_ns")
overshoot = metrics.get("vpeak_over_V")
l_loop = (overshoot / didt) if (didt and didt > 0 and overshoot is not None) else None
if overshoot is not None and overshoot <= 0:
warnings.append("没有测到 VDS 过冲（Vpeak <= Vbus），L_loop 记为 0")
l_loop = 0.0
qrr, t_rr_end, t_qpeak, qrr_trunc = estimate_qrr(data.t, id_on, timing, levels, cfg)
if qrr_trunc:
warnings.append("Qrr 恢复过程在搜索窗口末端仍未结束，Qrr 只作下限参考")
# 自动窗口如果刚好切到峰值，扩大一次 post 后重算。
if metrics.get("t_vpeak") is not None and abs(metrics["t_vpeak"] - (timing.t_off1 + post)) < 3 * data.dt:
warnings.append("Vpeak 落在窗口边界，已自动扩大 post 窗口")
metrics, ctx = compute_transient(data, timing, levels, pre, post * 1.5)
overshoot = metrics.get("vpeak_over_V")
didt = metrics.get("didt_off_A_ns")
l_loop = (overshoot / didt) if (didt and didt > 0 and overshoot is not None) else None
if metrics.get("t_ipeak") is not None and ctx.get("irm_end") is not None:
if ctx["irm_end"] - metrics["t_ipeak"] < 3 * data.dt:
warnings.append(
"IRM 峰值落在搜索窗口边界，可能未完整捕获；可调大 IRM_MAX_FRAC / IRM_MAX_US"
)
metrics.update({
"vbus_V": levels.vbus,
"vgs_high_V": levels.vgs_high - levels.vgs_low,
"vgs_low_V": levels.vgs_low,
"vds_on_V": levels.vds_on,
"vds_off_V": levels.vds_off,
"i_off_A": levels.i_off,
"i_load_on_A": levels.i_load_on,
"l_load_uH": None if l_load is None else l_load * 1e6,
"l_load_r2": r2,
# V / (A/ns) = nH，所以这里不再乘 1e9。
"l_loop_nH": l_loop,
"qrr_nC": qrr,
"t_rr_end": t_rr_end,
"qrr_truncated": qrr_trunc,
"pre_ns": ctx["pre"] * 1e9,
"post_ns": ctx["post"] * 1e9,
})
return metrics, ctx, levels, warnings
# ==============================================================================
# 9. 报告与 Markdown 表
# ==============================================================================
def _v(m: dict, key: str, nd: int = 2) -> str:
x = m.get(key)
if x is None or not np.isfinite(x):
return "N/A"
return f"{x:.{nd}f}"
TABLE_ROWS = [
# (中文名, 符号, 字典 key, 单位, 小数位)
("母线电压", "V_bus", "vbus_V", "V", 2),
("VGS 高电平", "V_GS,H", "vgs_high_V", "V", 2),
("第一脉冲关断电流", "I_off", "i_off_A", "A", 2),
("第一关断电压尖峰", "V_peak", "vpeak_V", "V", 2),
("电压过冲", "V_ov", "vpeak_over_V", "V", 2),
("第二开通电流峰值", "I_peak", "ipeak_A", "A", 2),
("反向恢复峰值电流", "I_RM", "irm_A", "A", 2),
("相对恢复平台的 IRM", "I_RM,plat", "irm_plat_A", "A", 2),
("负载电感", "L_load", "l_load_uH", "µH", 2),
("换流回路寄生电感", "L_loop", "l_loop_nH", "nH", 1),
("反向恢复电荷", "Q_rr", "qrr_nC", "nC", 0),
("关断 dI/dt (90%-10%)", "dI/dt_off", "didt_off_A_ns", "A/ns", 3),
("关断 dV/dt (10%-90%)", "dV/dt_off", "dvdt_off_V_ns", "V/ns", 3),
("开通 dI/dt (10%-90%)", "dI/dt_on", "didt_on_A_ns", "A/ns", 3),
("开通 dV/dt (90%-10%)", "dV/dt_on", "dvdt_on_V_ns", "V/ns", 3),
("tdon(VGS-ID)", "t_d(on)", "tdon_ns", "ns", 2),
("tr(ID)", "t_r", "tr_ns", "ns", 2),
("tdoff(VGS-ID)", "t_d(off)", "tdoff_ns", "ns", 2),
("tf(ID)", "t_f", "tf_ns", "ns", 2),
("tdvon(VGS-VDS)", "t_dv(on)", "tdvon_ns", "ns", 2),
("trv(VDS)", "t_rv", "trv_ns", "ns", 2),
("tdvoff(VGS-VDS)", "t_dv(off)", "tdvoff_ns", "ns", 2),
("tvf(VDS)", "t_vf", "tvf_ns", "ns", 2),
("关断损耗", "E_off", "eoff_uJ", "µJ", 3),
("开通损耗", "E_on", "eon_uJ", "µJ", 3),
("单次总损耗", "E_total", "etotal_uJ", "µJ", 3),
]
def print_report(m: dict, timing: PulseTiming, data: DptData, cfg: Config, paths: dict[str, Path], warnings: list[str]) -> None:
print("\n" + "=" * 78)
print(f" {TEST_TITLE}")
print(f" {DEVICE_NAME}")
print("=" * 78)
print(f" 输入: C1={paths[CH_VGS].name} C2={paths[CH_ID].name} C3={paths[CH_VDS].name}")
print(f" 采样: {len(data.t)} 点, dt={data.dt*1e9:.3f} ns, fs={data.fs/1e6:.1f} MSa/s")
print(f" 脉冲: tp1={timing.tp1*1e6:.3f} us, 死区={timing.t_dead*1e6:.3f} us, tp2={timing.tp2*1e6:.3f} us"
+ (" [第二脉冲截断]" if timing.truncated else ""))
print(f" 窗口: {cfg.window_mode} (pre={m.get('pre_ns', 0):.1f} ns, post={m.get('post_ns', 0):.1f} ns)")
print(f" Deskew: 硬件 +{HARDWARE_DESKEW_NS:.0f} ns (已写入 CSV) + 软件 {cfg.deskew_id_ns:+.1f} ns")
print("-" * 78)
print(f" Vbus={_v(m,'vbus_V')} V | VGS_high={_v(m,'vgs_high_V')} V | "
f"VDS_on={_v(m,'vds_on_V')} V | VDS_off={_v(m,'vds_off_V')} V")
print(f" I_off={_v(m,'i_off_A')} A | I_load(on)={_v(m,'i_load_on_A')} A | "
f"Vpeak={_v(m,'vpeak_V')} V (过冲 {_v(m,'vpeak_over_V')} V) | Ipeak={_v(m,'ipeak_A')} A")
print(f" IRM={_v(m,'irm_A')} A (相对恢复平台 {_v(m,'irm_plat_A')} A) | "
f"Qrr={_v(m,'qrr_nC',0)} nC")
print(f" dI/dt(off)={_v(m,'didt_off_A_ns',3)} A/ns | dV/dt(off)={_v(m,'dvdt_off_V_ns',3)} V/ns | "
f"dI/dt(on)={_v(m,'didt_on_A_ns',3)} A/ns | dV/dt(on)={_v(m,'dvdt_on_V_ns',3)} V/ns")
print(f" L_load={_v(m,'l_load_uH')} uH (R²={_v(m,'l_load_r2',4)}) | "
f"L_loop={_v(m,'l_loop_nH',1)} nH")
print("-" * 78)
print(f" tdon={_v(m,'tdon_ns')} ns | tr={_v(m,'tr_ns')} ns | "
f"tdoff={_v(m,'tdoff_ns')} ns | tf={_v(m,'tf_ns')} ns")
print(f" tdvon={_v(m,'tdvon_ns')} ns | trv={_v(m,'trv_ns')} ns | "
f"tdvoff={_v(m,'tdvoff_ns')} ns | tvf={_v(m,'tvf_ns')} ns")
print(f" Eoff={_v(m,'eoff_uJ',3)} uJ | Eon={_v(m,'eon_uJ',3)} uJ | "
f"Etotal={_v(m,'etotal_uJ',3)} uJ")
if warnings:
print("-" * 78)
print(" 提示/警告:")
for w in dict.fromkeys(warnings):
print(f" - {w}")
print("=" * 78 + "\n")
def print_markdown(m: dict) -> None:
if not MARKDOWN_TABLE:
return
print("--- 可直接粘贴到博客的 Markdown 表格 ---\n")
print("| 参数 | 符号 | 数值 | 单位 |")
print("|:---|:---|---:|:---|")
for label, sym, key, unit, nd in TABLE_ROWS:
print(f"| {label} | {sym} | {_v(m, key, nd)} | {unit} |")
print(
"\n> 口径：L_load 由第一脉冲 20%~80% 区间的 ID 线性拟合得到，"
"V_L = Vbus − VDS_on；L_loop = (Vpeak − Vbus) / (dI/dt, 90%–10%)；"
"Qrr 为第二开通后 ID 高出恢复平台的部分对时间的积分。\n"
)
# ==============================================================================
# 10. CSV 导出
# ==============================================================================
def export_processed_csv(
path: Path,
data: DptData,
timing: PulseTiming,
levels: Levels,
m: dict,
) -> None:
"""导出校准后的完整时域波形 + 两个开关窗口内的累计开关能量。"""
t = data.t
vgs = data.vgs_raw - levels.vgs_low
vds = data.vds_raw - levels.vds_on
id_off = data.id_raw - levels.id_base_pre
id_on = data.id_raw - levels.id_base_dead
# 死区里下管电流为 0，所以第二脉冲开始前用 pre 零偏，之后用死区零偏。
i_d = np.where(t < timing.t_on2, id_off, id_on)
p = vds * i_d
# 累计开关能量：只在 Eoff/Eon 积分窗口里累加，其余时间保持不变。
e_sw = np.zeros_like(t)
e_acc = 0.0
for key_s, key_e in (("t_eoff_s", "t_eoff_end"), ("t_eon_s", "t_eon_end")):
t0, t1 = m.get(key_s), m.get(key_e)
if t0 is None or t1 is None or t1 <= t0:
continue
seg = (t >= t0) & (t <= t1)
if int(seg.sum()) >= 2:
e_seg = cumulative_trapezoid(p[seg], t[seg], initial=0.0) * 1e6
e_sw[seg] = e_acc + e_seg
e_acc += float(e_seg[-1])
e_sw[t > t1] = e_acc
path.parent.mkdir(parents=True, exist_ok=True)
arr = np.column_stack([t, vgs, i_d, vds, p, e_sw])
np.savetxt(
path, arr, delimiter=",", fmt="%.9e",
header="Time_s,VGS_V,ID_A,VDS_V,P_W,E_sw_uJ",
comments="",
)
print(f"已导出处理后的波形：{path}")
def export_metrics_csv(path: Path, m: dict) -> None:
path.parent.mkdir(parents=True, exist_ok=True)
with path.open("w", encoding="utf-8-sig", newline="") as f:
f.write("Metric,Value,Unit\n")
for label, sym, key, unit, nd in TABLE_ROWS:
val = _v(m, key, nd)
f.write(f"{label} ({sym}),{val},{unit}\n")
print(f"已导出指标汇总：{path}")
# ==============================================================================
# 11. 绘图
# ==============================================================================
def plot_analysis(
data: DptData,
timing: PulseTiming,
levels: Levels,
m: dict,
ctx: dict,
cfg: Config,
) -> Path:
import matplotlib
if not cfg.show:
matplotlib.use("Agg")
import matplotlib.pyplot as plt
plt.rcParams["axes.unicode_minus"] = False
fig, axes = plt.subplots(
3, 2, figsize=(15, 9.5), sharex="col",
gridspec_kw={"height_ratios": [1.0, 1.45, 1.25]},
)
fig.suptitle(
f"{DEVICE_NAME} — {TEST_TITLE}\n"
f"Vbus={_v(m,'vbus_V')} V | I_off={_v(m,'i_off_A')} A | Vpeak={_v(m,'vpeak_V')} V | "
f"Ipeak={_v(m,'ipeak_A')} A | L_load={_v(m,'l_load_uH')} µH | "
f"L_loop={_v(m,'l_loop_nH',1)} nH | Qrr={_v(m,'qrr_nC',0)} nC",
fontsize=12.5, fontweight="bold", y=0.98,
)
# ---- 左栏：第一脉冲关断 ----
t_off_ns = (ctx["tw_off"] - timing.t_off1) * 1e9
ax0, ax1, ax2 = axes[0, 0], axes[1, 0], axes[2, 0]
ax0.plot(t_off_ns, ctx["vg_off"], color="#D99B00", lw=2.0, label="$V_{GS}$")
ax0.axhline(TH_TIME["vgs_off_start"] * ctx["vgs_amp"], color="#D99B00", ls=":", alpha=0.7, label="90% $V_{GS}$")
if m.get("t_vgs_90_off") is not None:
ax0.axvline((m["t_vgs_90_off"] - timing.t_off1) * 1e9, color="#D99B00", ls="--", alpha=0.6)
ax0.set_title(
f"First Pulse Turn-Off\n"
f"$t_{{d(off)}}$={_v(m,'tdoff_ns')} ns, $t_f$={_v(m,'tf_ns')} ns | "
f"$t_{{dv(off)}}$={_v(m,'tdvoff_ns')} ns, $t_{{vf}}$={_v(m,'tvf_ns')} ns",
fontsize=10.5, fontweight="bold",
)
ax0.set_ylabel("$V_{GS}$ (V)", color="#B37700", fontweight="bold")
ax0.grid(True, ls="--", alpha=0.35)
ax0.legend(loc="upper right", fontsize=8.5)
ax1_id = ax1.twinx()
l_vds = ax1.plot(t_off_ns, ctx["vd_off"], color="#0088CC", lw=2.0, label="$V_{DS}$ (V)")
l_id = ax1_id.plot(t_off_ns, ctx["id_off"], color="#D81B60", lw=2.0, label="$I_D$ (A)")
if m.get("t_vpeak") is not None:
xv = (m["t_vpeak"] - timing.t_off1) * 1e9
yv = m["vpeak_V"] - levels.vds_on
ax1.plot(xv, yv, "o", color="#0088CC")
ax1.annotate(
f"$V_{{peak}}$={_v(m,'vpeak_V')} V\n($dV/dt$={_v(m,'dvdt_off_V_ns',2)} V/ns)",
xy=(xv, yv), xytext=(xv + 12, yv - 4),
arrowprops=dict(arrowstyle="->", color="#0088CC", lw=1.2),
fontsize=8.5, fontweight="bold", color="#005580",
)
if m.get("t_id_10_off") is not None:
ax1_id.annotate(
f"$dI/dt$=-{_v(m,'didt_off_A_ns',2)} A/ns",
xy=((m["t_id_10_off"] - timing.t_off1) * 1e9, 0.45 * levels.i_off),
xytext=((m["t_id_10_off"] - timing.t_off1) * 1e9 - 45, 0.45 * levels.i_off),
arrowprops=dict(arrowstyle="->", color="#D81B60", lw=1.2),
fontsize=8.5, fontweight="bold", color="#AD1457",
)
if m.get("t_eoff_s") is not None:
ax1.axvline((m["t_eoff_s"] - timing.t_off1) * 1e9, color="#444444", ls="--", lw=1.1)
if m.get("t_eoff_end") is not None:
ax1.axvline((m["t_eoff_end"] - timing.t_off1) * 1e9, color="#444444", ls="--", lw=1.1)
ax1.set_ylabel("$V_{DS}$ (V)", color="#0088CC", fontweight="bold")
ax1_id.set_ylabel("$I_D$ (A)", color="#D81B60", fontweight="bold")
ax1.grid(True, ls="--", alpha=0.35)
ax1.legend(l_vds + l_id, [x.get_label() for x in l_vds + l_id], loc="center right", fontsize=8.5)
ax2_e = ax2.twinx()
p_off_kw = ctx["vd_off"] * ctx["id_off"] * 1e-3
ax2.plot(t_off_ns, p_off_kw, color="#6A1B9A", lw=1.6, label="$P_{sw}(t)$ (kW)")
if m.get("t_eoff_s") is not None and m.get("t_eoff_end") is not None:
mask = (ctx["tw_off"] >= m["t_eoff_s"]) & (ctx["tw_off"] <= m["t_eoff_end"])
ax2.fill_between(t_off_ns[mask], 0, p_off_kw[mask], color="#6A1B9A", alpha=0.22, label="JEDEC $E_{off}$ area")
if ctx.get("eoff_curve") is not None:
ax2_e.plot(t_off_ns, ctx["eoff_curve"], color="#2E7D32", lw=2.2, ls="-.",
label=f"$E_{{off}}$ = {_v(m,'eoff_uJ',2)} µJ")
ax2.set_xlabel("Time relative to $V_{GS}$ 50% turn-off edge (ns)", fontweight="bold")
ax2.set_ylabel("Power (kW)", color="#6A1B9A", fontweight="bold")
ax2_e.set_ylabel("Energy (µJ)", color="#2E7D32", fontweight="bold")
ax2.grid(True, ls="--", alpha=0.35)
ax2_e.legend(loc="upper left", fontsize=8.5)
# ---- 右栏：第二脉冲开通 ----
t_on_ns = (ctx["tw_on"] - timing.t_on2) * 1e9
bx0, bx1, bx2 = axes[0, 1], axes[1, 1], axes[2, 1]
bx0.plot(t_on_ns, ctx["vg_on"], color="#D99B00", lw=2.0, label="$V_{GS}$")
bx0.axhline(TH_TIME["vgs_on_start"] * ctx["vgs_amp"], color="#D99B00", ls=":", alpha=0.7, label="10% $V_{GS}$")
if m.get("t_vgs_10_on") is not None:
bx0.axvline((m["t_vgs_10_on"] - timing.t_on2) * 1e9, color="#D99B00", ls="--", alpha=0.6)
bx0.set_title(
f"Second Pulse Turn-On\n"
f"$t_{{d(on)}}$={_v(m,'tdon_ns')} ns, $t_r$={_v(m,'tr_ns')} ns | "
f"$t_{{dv(on)}}$={_v(m,'tdvon_ns')} ns, $t_{{rv}}$={_v(m,'trv_ns')} ns",
fontsize=10.5, fontweight="bold",
)
bx0.set_ylabel("$V_{GS}$ (V)", color="#B37700", fontweight="bold")
bx0.grid(True, ls="--", alpha=0.35)
bx0.legend(loc="lower right", fontsize=8.5)
bx1_id = bx1.twinx()
l_vds_on = bx1.plot(t_on_ns, ctx["vd_on"], color="#0088CC", lw=2.0, label="$V_{DS}$ (V)")
l_id_on = bx1_id.plot(t_on_ns, ctx["id_on"], color="#D81B60", lw=2.0, label="$I_D$ (A)")
bx1_id.axhline(levels.i_off, color="#D81B60", ls=":", alpha=0.55, label=f"$I_{{off}}$={levels.i_off:.1f} A")
if m.get("t_ipeak") is not None:
xp = (m["t_ipeak"] - timing.t_on2) * 1e9
yp = m["ipeak_A"] - levels.id_base_dead
bx1_id.plot(xp, yp, "o", color="#D81B60")
bx1_id.annotate(
f"$I_{{peak}}$={_v(m,'ipeak_A')} A\n$I_{{RM}}$={_v(m,'irm_A')} A",
xy=(xp, yp), xytext=(xp + 12, yp - 4),
arrowprops=dict(arrowstyle="->", color="#D81B60", lw=1.2),
fontsize=8.5, fontweight="bold", color="#AD1457",
)
if m.get("t_vds_10_on") is not None:
bx1.annotate(
f"$dV/dt$=-{_v(m,'dvdt_on_V_ns',2)} V/ns",
xy=((m["t_vds_10_on"] - timing.t_on2) * 1e9, 0.35 * ctx["vds_amp"]),
xytext=((m["t_vds_10_on"] - timing.t_on2) * 1e9 + 15, 0.45 * ctx["vds_amp"]),
arrowprops=dict(arrowstyle="->", color="#0088CC", lw=1.2),
fontsize=8.5, fontweight="bold", color="#005580",
)
if m.get("t_eon_s") is not None:
bx1.axvline((m["t_eon_s"] - timing.t_on2) * 1e9, color="#444444", ls="--", lw=1.1)
if m.get("t_eon_end") is not None:
bx1.axvline((m["t_eon_end"] - timing.t_on2) * 1e9, color="#444444", ls="--", lw=1.1)
bx1.set_ylabel("$V_{DS}$ (V)", color="#0088CC", fontweight="bold")
bx1_id.set_ylabel("$I_D$ (A)", color="#D81B60", fontweight="bold")
bx1.grid(True, ls="--", alpha=0.35)
bx1.legend(l_vds_on + l_id_on, [x.get_label() for x in l_vds_on + l_id_on], loc="center right", fontsize=8.5)
bx2_e = bx2.twinx()
p_on_kw = ctx["vd_on"] * ctx["id_on"] * 1e-3
bx2.plot(t_on_ns, p_on_kw, color="#6A1B9A", lw=1.6, label="$P_{sw}(t)$ (kW)")
if m.get("t_eon_s") is not None and m.get("t_eon_end") is not None:
mask = (ctx["tw_on"] >= m["t_eon_s"]) & (ctx["tw_on"] <= m["t_eon_end"])
bx2.fill_between(t_on_ns[mask], 0, p_on_kw[mask], color="#6A1B9A", alpha=0.22, label="JEDEC $E_{on}$ area")
if ctx.get("eon_curve") is not None:
bx2_e.plot(t_on_ns, ctx["eon_curve"], color="#2E7D32", lw=2.2, ls="-.",
label=f"$E_{{on}}$ = {_v(m,'eon_uJ',2)} µJ")
bx2.set_xlabel("Time relative to $V_{GS}$ 50% turn-on edge (ns)", fontweight="bold")
bx2.set_ylabel("Power (kW)", color="#6A1B9A", fontweight="bold")
bx2_e.set_ylabel("Energy (µJ)", color="#2E7D32", fontweight="bold")
bx2.grid(True, ls="--", alpha=0.35)
bx2_e.legend(loc="upper left", fontsize=8.5)
plt.tight_layout(rect=[0, 0, 1, 0.94])
out = cfg.out_dir / OUTPUT_FIG_NAME
out.parent.mkdir(parents=True, exist_ok=True)
fig.savefig(out, dpi=PLOT_DPI)
if cfg.show:
plt.show()
plt.close(fig)
print(f"已生成分析图：{out}")
return out
# ==============================================================================
# 12. 命令行参数与主流程
# ==============================================================================
def build_arg_parser() -> argparse.ArgumentParser:
p = argparse.ArgumentParser(
description="双脉冲测试（DPT）CSV 自动分析：开关时间、损耗、L_load、L_loop、Qrr",
formatter_class=argparse.RawDescriptionHelpFormatter,
epilog=(
"示例：\n"
" python dpt_analyzer.py\n"
" python dpt_analyzer.py -c1 a_C1.csv -c2 a_C2.csv -c3 a_C3.csv\n"
" python dpt_analyzer.py --export-csv --export-metrics\n"
" python dpt_analyzer.py --rogowski HQRocoil-Mini\n"
" python dpt_analyzer.py --window manual --pre-ns 80 --post-ns 200 --no-show\n"
),
)
g_in = p.add_argument_group("输入文件")
g_in.add_argument("-c1", "--c1", type=Path,
help="CH1 / VGS 的 CSV；省略时自动扫描 *_C1_*.csv 并推导 C2/C3")
g_in.add_argument("-c2", "--c2", type=Path,
help="CH2 / ID 的 CSV（省略时由 C1 文件名推导）")
g_in.add_argument("-c3", "--c3", type=Path,
help="CH3 / VDS 的 CSV（省略时由 C1 文件名推导）")
g_in.add_argument("--data-dir", type=Path, default=Path(DEFAULT_DATA_DIR),
help=f"自动扫描目录（默认 {DEFAULT_DATA_DIR}）")
g_edge = p.add_argument_group("分析窗口与边沿识别")
g_edge.add_argument("--window", choices=("auto", "manual"), default=None,
help="窗口模式：auto 按实测开关时间自动定宽；manual 用 --pre-ns/--post-ns（默认 auto）")
g_edge.add_argument("--pre-ns", type=float, default=None,
help="manual 模式的前窗，单位 ns（默认 60）")
g_edge.add_argument("--post-ns", type=float, default=None,
help="manual 模式的后窗，单位 ns（默认 160）")
g_edge.add_argument("--smooth-ns", type=float, default=None,
help="VGS 移动平均窗宽，单位 ns（默认 10）")
g_edge.add_argument("--min-pulse-ns", type=float, default=None,
help="最小有效脉宽，单位 ns（默认 200）")
g_edge.add_argument("--edge-hyst", type=float, default=None,
help="边沿迟滞比例，0~0.5（默认 0.10）")
g_edge.add_argument("--deskew-id-ns", type=float, default=None,
help="ID 软件 deskew，单位 ns（默认 0）")
g_edge.add_argument("--no-auto-zero", action="store_true",
help="关闭自动零偏校准（默认开启）")
g_rog = p.add_argument_group("罗氏线圈补偿")
g_rog.add_argument("--rogowski", nargs="?", const="__default__",
help="开启罗氏线圈补偿，可选预设名（不带值时用 HQRocoil-Mini）")
g_rog.add_argument("--no-rogowski", action="store_true",
help="强制关闭罗氏线圈补偿（覆盖顶部配置）")
g_rog.add_argument("--rogowski-tau-us", type=float,
help="临时覆盖预设里的时间常数，单位 us")
g_rog.add_argument("--rogowski-gain", type=float,
help="临时覆盖预设里的高通失配增益")
g_out = p.add_argument_group("输出")
g_out.add_argument("--out-dir", type=Path, default=Path(OUTPUT_DIR),
help=f"图片和导出 CSV 的输出目录（默认 {OUTPUT_DIR}）")
g_out.add_argument("--export-csv", nargs="?", const="__default__",
help=f"导出处理后的时域 CSV；不带路径时写 {DEFAULT_EXPORT_CSV}")
g_out.add_argument("--export-metrics", nargs="?", const="__default__",
help=f"导出指标汇总 CSV；不带路径时写 {DEFAULT_EXPORT_METRICS}")
g_out.add_argument("--no-plot", action="store_true", help="不生成分析图")
g_out.add_argument("--no-show", action="store_true",
help="生成分析图但不弹窗（无头/服务器环境）")
g_rep = p.add_argument_group("手工覆盖与报告")
g_rep.add_argument("--t-on1-us", type=float,
help="手工指定第一脉冲开通时刻，单位 us；四个时刻给齐时跳过自动识别")
g_rep.add_argument("--t-off1-us", type=float,
help="手工指定第一脉冲关断时刻，单位 us")
g_rep.add_argument("--t-on2-us", type=float,
help="手工指定第二脉冲开通时刻，单位 us")
g_rep.add_argument("--t-off2-us", type=float,
help="手工指定第二脉冲关断时刻，单位 us")
g_rep.add_argument("--title", default=TEST_TITLE, help="报告和分析图标题")
g_rep.add_argument("--device", default=DEVICE_NAME, help="被测器件描述，写进报告标题")
g_rep.add_argument("--verbose", action="store_true", help="打印输入路径、点数等调试信息")
return p
def build_config(args) -> Config:
cfg = Config()
if args.smooth_ns is not None:
cfg.smooth_ns = args.smooth_ns
if args.min_pulse_ns is not None:
cfg.min_pulse_ns = args.min_pulse_ns
if args.edge_hyst is not None:
cfg.edge_hyst = args.edge_hyst
if args.deskew_id_ns is not None:
cfg.deskew_id_ns = args.deskew_id_ns
if args.window is not None:
cfg.window_mode = args.window
if args.pre_ns is not None:
cfg.window_pre_ns = args.pre_ns
if args.post_ns is not None:
cfg.window_post_ns = args.post_ns
if args.no_auto_zero:
cfg.auto_zero = False
cfg.plot = not args.no_plot
cfg.show = PLOT_SHOW and not args.no_show
cfg.out_dir = args.out_dir
cfg.verbose = args.verbose
if args.no_rogowski:
cfg.rogowski = False
elif args.rogowski is not None:
cfg.rogowski = True
if args.rogowski != "__default__":
cfg.rogowski_preset = args.rogowski
cfg.rogowski_tau_us = args.rogowski_tau_us
cfg.rogowski_gain = args.rogowski_gain
if args.export_csv is not None:
name = DEFAULT_EXPORT_CSV if args.export_csv == "__default__" else args.export_csv
cfg.export_csv = cfg.out_dir / name
if args.export_metrics is not None:
name = DEFAULT_EXPORT_METRICS if args.export_metrics == "__default__" else args.export_metrics
cfg.export_metrics = cfg.out_dir / name
return cfg
def resolve_input_paths(args, cfg: Config) -> dict[str, Path]:
"""解析 -c1/-c2/-c3；缺省时自动扫描 *_C1_*.csv 并推导 C2/C3。"""
data_dir = Path(args.data_dir)
c1, c2, c3 = args.c1, args.c2, args.c3
if c1 is None:
candidates = sorted(data_dir.glob(CSV_GLOB_C1), key=lambda p: p.stat().st_mtime, reverse=True)
if not candidates:
raise DptError(
f"在 {data_dir.resolve()} 下找不到 {CSV_GLOB_C1}。"
"请用 -c1/-c2/-c3 指定，或把三份 CSV 放在当前目录。"
)
c1 = candidates[0]
if len(candidates) > 1:
print(f"[提示] 找到 {len(candidates)} 个 C1 文件，使用最新的 {c1.name}")
def derive(base: Path, from_tag: str, to_tag: str) -> Path | None:
name = base.name
for a, b in ((f"_{from_tag}_", f"_{to_tag}_"), (f"{from_tag}-", f"{to_tag}-")):
if a in name:
cand = base.with_name(name.replace(a, b))
if cand.exists():
return cand
hits = sorted(base.parent.glob(f"*_{to_tag}_*.csv"))
return hits[0] if hits else None
if c2 is None:
c2 = derive(c1, "C1", "C2")
if c3 is None:
c3 = derive(c1, "C1", "C3")
missing = [name for name, p in (("C2", c2), ("C3", c3)) if p is None or not Path(p).exists()]
if missing:
raise DptError(f"无法推导/找到 {', '.join(missing)} 的 CSV，请显式传 -c2 / -c3")
return {CH_VGS: Path(c1), CH_ID: Path(c2), CH_VDS: Path(c3)}
def main(argv: list[str] | None = None) -> int:
global TEST_TITLE, DEVICE_NAME
# Windows 控制台默认是 GBK，直接打印 µ/² 等字符会报 UnicodeEncodeError。
# 统一改成 UTF-8；重定向到文件或管道时也能正常工作。
for stream in (sys.stdout, sys.stderr):
try:
stream.reconfigure(encoding="utf-8")
except Exception:
pass
parser = build_arg_parser()
args = parser.parse_args(argv)
cfg = build_config(args)
TEST_TITLE = args.title
DEVICE_NAME = args.device
try:
paths = resolve_input_paths(args, cfg)
data = load_waveforms(paths, cfg)
if cfg.verbose:
print("输入文件：")
for k, v in paths.items():
print(f" {k}: {v.resolve()}")
print(f" 点数={len(data.t)}, dt={data.dt*1e9:.3f} ns")
timing = manual_timing(args, data.t)
if timing is None:
timing, w = detect_pulses(data.t, data.vgs_raw, cfg)
data.warnings.extend(w)
else:
print("[提示] 使用命令行手工指定的四个脉冲时刻，跳过自动边沿识别")
i_comp, w = compensate_rogowski(data.t, data.id_raw, cfg)
data.warnings.extend(w)
if cfg.rogowski:
data.id_raw = i_comp
metrics, ctx, levels, warnings = analyze(data, timing, cfg)
print_report(metrics, timing, data, cfg, paths, warnings)
print_markdown(metrics)
if cfg.export_csv is not None:
export_processed_csv(cfg.export_csv, data, timing, levels, metrics)
if cfg.export_metrics is not None:
export_metrics_csv(cfg.export_metrics, metrics)
if cfg.plot:
plot_analysis(data, timing, levels, metrics, ctx, cfg)
return 0
except DptError as exc:
print(f"\n[错误] {exc}\n", file=sys.stderr)
return 2
except KeyboardInterrupt:
return 130
if __name__ == "__main__":
raise SystemExit(main())
|
